bridge joint device
HT-NMC
HT-NMC

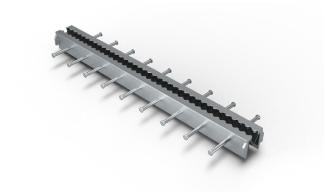

Monocell joint
A product with excellent driving performance and durability by forcibly manufacturing the top plate in a round shape, and an expansion joint device with improved reliability of the connection part, thereby improving workability and waterproofing function.
durability
The top plate is made of round steel, which reduces shock during driving and provides excellent product durability.
waterproof
Improved waterproofing by installing a connection reinforcement device with improved reliability
Maintainability
The entire product is galvanized to prevent rust and provide excellent maintainability.
Constructability
It can be manufactured in segments to fit the lane width and is very easy to construct due to its simple structure.
Specification table
| MODEL | Product identification number | amount of expansion | intermittent | Standard dimensions | Standard material allowance (per 1m) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | Mid | Max | A | B | C | concrete | amount of rebar | welding amount | |||
| HT-NMC-30H | 24694287 | 30 | 25 | 40 | 55 | 100 | 200 | 300 | 0.09㎡ | 17.47kg | 1.56m |
| HT-NMC-50H | 24694288 | 50 | 25 | 50 | 75 | 120 | 200 | 300 | 0.09㎡ | 17.47kg | 1.56m |
| HT-NMC-60H | 24694289 | 60 | 35 | 65 | 95 | 120 | 200 | 330 | 0.099㎡ | 19.28kg | 1.56m |
| HT-NMC-80H | 24694290 | 80 | 40 | 80 | 120 | 135 | 200 | 350 | 0.105㎡ | 19.28kg | 1.56m |
| HT-NMC-100H | 24694291 | 100 | 40 | 90 | 140 | 145 | 250 | 370 | 0.111㎡ | 19.28kg | 1.56m |
| MODEL | Product identification number | amount of expansion | intermittent | ||
|---|---|---|---|---|---|
| Min | Mid | Max | |||
| HT-NMC-30H | 24694287 | 30 | 25 | 40 | 55 |
| HT-NMC-50H | 24694288 | 50 | 25 | 50 | 75 |
| HT-NMC-60H | 24694289 | 60 | 35 | 65 | 95 |
| HT-NMC-80H | 24694290 | 80 | 40 | 80 | 120 |
| HT-NMC-100H | 24694291 | 100 | 40 | 90 | 140 |
| MODEL | Standard dimensions | Standard material allowance (per 1m) | ||||
|---|---|---|---|---|---|---|
| A | B | C | concrete | amount of rebar | welding amount | |
| HT-NMC-30H | 100 | 200 | 300 | 0.09㎡ | 17.47kg | 1.56m |
| HT-NMC-50H | 120 | 200 | 300 | 0.09㎡ | 17.47kg | 1.56m |
| HT-NMC-60H | 120 | 200 | 330 | 0.099㎡ | 19.28kg | 1.56m |
| HT-NMC-80H | 135 | 200 | 350 | 0.105㎡ | 19.28kg | 1.56m |
| HT-NMC-100H | 145 | 250 | 370 | 0.111㎡ | 19.28kg | 1.56m |
Monocell joint
HT-NMC-30H
- identification number24694287
- standard1800 x 90 x 102mm
Monocell joint
HT-NMC-50H
- identification number24694288
- standard1800 x 100 x 102mm
Monocell joint
HT-NMC-60H
- identification number24694289
- standard1800 x 115 x 102mm
Monocell joint
HT-NMC-80H
- identification number24694290
- standard1800 x 135 x 102mm
Monocell joint
HT-NMC-100H
- identification number24694291
- standard1800 x 145 x 102mm
