bridge joint device

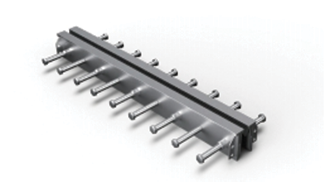

HT-NMCL
HT-NMCL
longitudinal joint
This product is applied to bridge expansion sections and has a narrow gap and the deck is manufactured horizontally to the driving direction, providing excellent driving performance. The entire product is hot-dip galvanized, providing excellent maintainability.
stability
By applying reinforcement to the joint, the joint fastening property is improved, resulting in excellent structural stability.
waterproof
Improved waterproofing by installing a connection reinforcement device with improved reliability
Maintainability
The entire steel is hot-dip galvanized, so it is a rust-free product with excellent maintainability.
drivability
The top plate is manufactured horizontally to the vehicle's driving direction, resulting in excellent driving performance and low noise.
Specification table
| MODEL | Product identification number | amount of expansion | width | length | thickness |
|---|---|---|---|---|---|
| HT-NMCL-20H | 24694285 | 20 | 90 | 1800 | 102 |
| HT-NMCL-30H | 24694286 | 30 | 100 | 480 | 40 |
longitudinal joint
HT-NMCL-20H
- identification number24694285
- standard1800x 90 x 102mm
longitudinal joint
HT-NMCL-30H
- identification number24694286
- standard1800 x 100 x 102mm
