bridge joint device
HT-SFJ
HT-SFJ

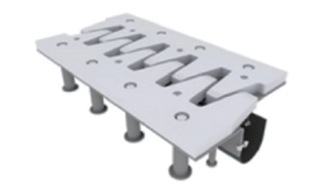

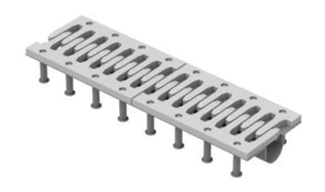

Steel finger joint
This product is capable of accommodating large expansion volumes and is an expansion joint device with excellent driving performance and water resistance due to the rubber sheet being manufactured as a single piece to match the length of the bridge.
durability
The product top is made of steel and has anti-loosening bolts for superior durability.
waterproof
It is manufactured in one piece to fit the width of the bridge without any joints, so it has excellent waterproofing properties.
Maintainability
It is easy to construct and advantageous in shortening the construction period as it can be delivered after factory assembly according to the on-site conditions.
Constructability
Maintainability is excellent as it prevents safety accidents due to separation of the top plate by applying anti-loosening bolts.
Specification table
| MODEL | Product identification number | amount of expansion | joint spacing | length | intermittent | block out | ||
|---|---|---|---|---|---|---|---|---|
| Min | max | W | H | |||||
| HT-SFJ-50H | 24694299 | 50 | 25 | 75 | 995 | 25~75 | 180 | 250 |
| HT-SFJ-80H | 24694300 | 80 | 40 | 120 | 995 | 40~120 | 210 | 250 |
| HT-SFJ-100H | 24694301 | 100 | 50 | 150 | 995 | 50~150 | 295 | 250 |
| HT-SFJ-120H | 24694302 | 120 | 60 | 180 | 995 | 60~180 | 310 | 250 |
| HT-SFJ-150H | 24351140 | 150 | 460 | 610 | 995 | 50~220 | 400 | 270 |
| HT-SFJ-160H | 24351141 | 160 | 470 | 630 | 995 | 50~220 | 400 | 270 |
| HT-SFJ-200H | 24351142 | 200 | 550 | 750 | 995 | 50~250 | 400 | 270 |
| HT-SFJ-240H | 24351143 | 240 | 565 | 815 | 995 | 140~380 | 400 | 250 |
| HT-SFJ-250H | 24351144 | 250 | 565 | 815 | 995 | 140~390 | 400 | 250 |
| HT-SFJ-300H | 24351145 | 300 | 630 | 930 | 995 | 165~465 | 420 | 250 |
| HT-SFJ-350H | 24351146 | 350 | 675 | 1025 | 995 | 195~545 | 430 | 300 |
| HT-SFJ-400H | 24351147 | 400 | 740 | 1140 | 995 | 220~620 | 450 | 300 |
| HT-SFJ-450H | 24351148 | 450 | 490 | 1240 | 995 | 250~700 | 460 | 330 |
| HT-SFJ-500H | 24351149 | 500 | 840 | 1340 | 995 | 280~780 | 470 | 350 |
| HT-SFJ-550H | 24351150 | 550 | 890 | 1440 | 995 | 305~855 | 480 | 350 |
| HT-SFJ-600H | 24351151 | 600 | 960 | 1560 | 995 | 335~935 | 500 | 350 |
Steel finger joint
HT-SFJ-50H
- identification number24694299
- standard995 x 400 x 35mm
Steel finger joint
HT-SFJ-80H
- identification number24694300
- standard995 x 450 x 35mm
Steel finger joint
HT-SFJ-100H
- identification number24694301
- standard995 x 450 x 35mm
Steel finger joint
HT-SFJ-120H
- identification number24694302
- standard995 x 500 x 35mm
Steel finger joint
HT-SFJ-150H
- identification number24694303
- standard995 x 550 x 40mm
Steel finger joint
HT-SFJ-160H
- identification number24694304
- standard995 x 550 x 40mm
Steel finger joint
HT-SFJ-200H
- identification number24694305
- standard995 x 625 x 40mm
Steel finger joint
HT-SFJ-240H
- identification number24694306
- standard995 x 700 x 45mm
Steel finger joint
HT-SFJ-250H
- identification number24694307
- standard995 x 700 x 45mm
Steel finger joint
HT-SFJ-300H
- identification number24694308
- standard995 x 770 x 45mm
Steel finger joint
HT-SFJ-350H
- identification number24694309
- standard995 x 850 x 50mm
Steel finger joint
HT-SFJ-400H
- identification number24694310
- standard995 x 940 x 55mm
Steel finger joint
HT-SFJ-450H
- identification number24694311
- standard995 x 1015 x 60mm
Steel finger joint
HT-SFJ-500H
- identification number24694312
- standard995 x 1090 x 65mm
Steel finger joint
HT-SFJ-550H
- identification number24694313
- standard995 x 1165 x 65mm
Steel finger joint
HT-SFJ-600H
- identification number24694314
- standard995 x 1260 x 70mm
